Aluminum Insulating Glass Silicone Sealant Butyl Extruder Machine

Name: Aluminum Insulating Glass Silicone Sealant Butyl Extruder Machine
Brand: LIJIANG
Price: 11000 USD

Wholesale Aluminum Insulating Glass Silicone Sealant Butyl Extruder Machine from china suppliers

Brand Name : LIJIANG

Model Number : LJTB01

Certification : CE

Place of Origin : CHINA

MOQ : 1 Set

Price : USD 11000 - 13000

Payment Terms : L/C, T/T

Supply Ability : 15 Sets per month

Delivery Time : 15 work days

Packaging Details : Wooden packing

Product name : Butyl Extruder Machine LJTB 01

Squeeze pressure : 10-18MPa

Temperature : 110~140℃

Glue thickness : 0.3-0.5mm

Glue width : 3.5mm

Aluminum spacer width : 6A - 27A

Contact Now

Butyl Silicone Sealant Extruder Machine for insulating machine

New butyl extruder machine is a necessary equipment for manufacturing aluminum-frame type
insulated glass, even it is necessary for Vertical insulating glass flat press production line.The
butyl that be glued on the both side of aluminum frame by New butyl extruder machine, is the
first sealant for insulating glass. So the quality of the butyl directly decides the quality of
insulating glass and using life.
The type of LJTB01 butyl extruder machine is used for spreading aluminum spacer frames
evenly with hot melt butyl. This equipment use large electrical control panel which makes the
operation more easier. The conveyor of aluminum is controlled by frequency converter, and
the speed can be adjusted from 0m/min to 47m/min, which has the fastest speed in China.
It is very popular with energy-saving. Its squeezing system adopts pneumatic and hydraulic
supercharging system, which makes the squeezing pressure more stable. The dispensing
cylinder uses vertical rotary support system and it makes the refill of butyl easier. It can
prolong the life of squeezing system and set the heating time in 24 hours with electricity and
air pressure. The distance of squeezing head can be adjusted automatically according to
different aluminum spacer. The machine has reached the worldwide technology with the
characteristic of complete function and stable working mode.

TEFLON glue nozzles
Adopt Teflon glue nozzles, keep spreading quickly.

Germany Siemens parts
Adopt Siemens brand, stable performance.

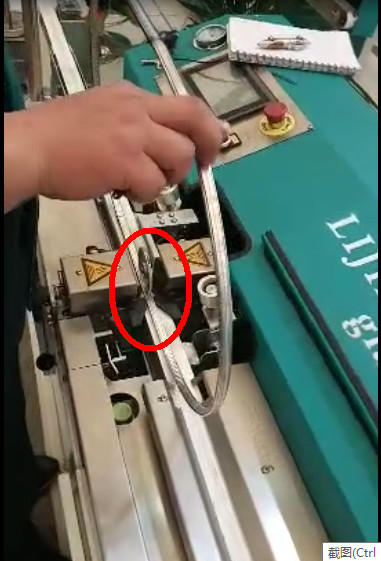

Special structure
The special part controls both sides of nozzle opening and closing at the same time.

Glue cylinder
Adopt the upright structure, easy to change butyl.

Squeeze pressure	10-18MPa
Temperature	110~140℃
Aluminum spacer width	4-30mm
Speed	0-47m/min
Diameter of butyl cylinder	200mm
Air supply	0.4m³/min
Air pressure	≥0.6MPa
Total power	415v 50 hz 3 phrase
Dimension	2950×890×1004mm(L×W×H)
Weight	750kg

Main components

Name	Brand	Original
PLC	KINCO	China
Valve	HAWE	German
Low voltage electrical apparatus	SIEMENS	German
Hydraulic and pneumatic supercharging system	MAXIMATOR	German
Frequency converter	KINCO	China
Pneumatic components(cylinder/valve)	ARTAC	Taiwan
Quick exhaust valve/Vacuum generator	SMC	Japan SMC
Travel light	OMRON	Japan
Optical fiber	OMRON	Japan
